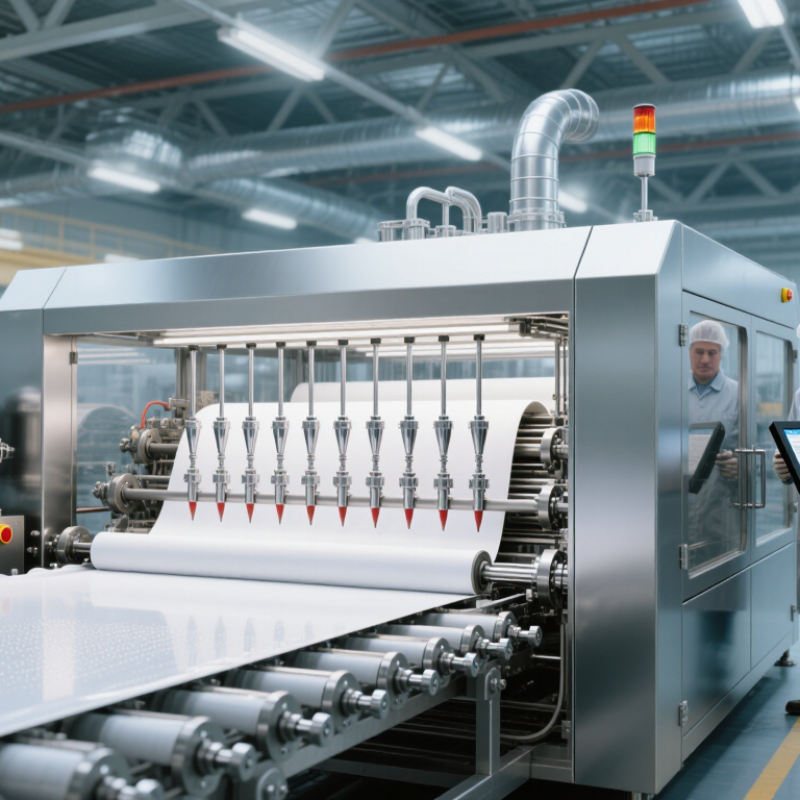

China Best Water Based Gel Coating Machine Manufacturer?
Selecting the best Water-Based Gel Coating Machine requires more than comparing prices, speed, or catalog photographs. Manufacturers must examine gel viscosity, coating width, drying temperature, transfer accuracy, and cleaning time. A stable line should spread a smooth film, even across textured surfaces. Small defects become expensive during continuous production.
Industry reports from Grand View Research and MarketsandMarkets indicate that water-based coatings already represent a multibillion-dollar global market. Their forecasts generally show annual growth of approximately 4% to 6%, driven by lower-VOC formulations and stricter environmental expectations. However, market estimates differ by product category and regional coverage. The comparison is not perfectly clean. That limitation matters.
Dr. Mark D. Soucek, a recognized coatings researcher, offers a useful principle: “Coating performance depends on formulation, application, and curing—not on resin selection alone.” This insight applies directly to machine evaluation. A reliable Water-Based Gel Coating Machine must control more than liquid delivery. It should maintain consistent pressure, uniform web tension, and repeatable drying conditions. Operators also need practical access to pumps, rollers, nozzles, and filtration components. Experience reveals what brochures often omit. A machine may look advanced, yet perform poorly with high-viscosity gel. Therefore, this guide compares leading manufacturers through technical capability, production experience, service responsiveness, safety design, and long-term operating value. The ideal supplier is not always the cheapest. Sometimes, the overlooked detail decides everything.
What Is a Water-Based Gel Coating Machine?
A water-based gel coating machine is industrial equipment designed to mix, measure, and apply water-based gel onto a moving surface. The coated material may include films, fabrics, foam, paper, or other compatible substrates. Unlike solvent-based systems, it uses water as the primary carrier, which can simplify handling and reduce strong odors in suitable production environments.
A typical machine includes a mixing tank, agitator, pump, metering unit, coating head, conveyor, and drying section. The agitator keeps the gel uniform. The metering system controls coating thickness. Slot dies, rollers, or blades may be selected according to viscosity and surface requirements. Drying removes moisture through controlled air movement and heat. Excessive heat can damage sensitive materials. That detail matters.
In practical production, operators must adjust viscosity, web tension, line speed, and drying temperature together. A small change in gel temperature can affect flow and final thickness. Consistency matters. Before ordering equipment, manufacturers should test real materials under several speeds and coating weights. Laboratory samples can look excellent, yet continuous production may reveal edge buildup or uneven drying. I would not promise perfect results from one standard setup. Reliable suppliers should provide technical drawings, operating limits, maintenance guidance, and trial data. These details help buyers judge whether the machine matches their process, workforce, and expected output.
How Does a Water-Based Gel Coating Machine Work?
A water-based gel coating machine applies a controlled gel layer to film, fabric, paper, or other prepared surfaces. The process begins in a mixing tank, where water-based gel is blended gently to reduce bubbles and uneven viscosity. A low-shear pump then moves the material through a filter. This step helps remove small particles before coating.
The gel reaches a coating head, such as a slot die or metering roller system. The head spreads a measured layer across the moving substrate. Sensors monitor coating weight, line speed, and material tension. Heated air then removes moisture inside a drying chamber. The temperature must rise gradually. Excessive heat can cause skinning, cracks, or poor adhesion.
From practical equipment checks, clean circulation lines matter as much as the coating head. Even a small dried residue can create streaks across the finished surface. Operators should also test viscosity before each production run. The same setting may not work after storage or temperature changes. A water-based formula is safer to handle in many applications, but it still needs proper ventilation and process control.
The machine is not foolproof. Humidity, pump pressure, and substrate cleanliness can change the result. A short trial run often reveals problems that specifications miss. Careful adjustment produces a smoother, more consistent gel film.
Key Types and Specifications of Gel Coating Machines
China Best Water Based Gel Coating Machine Manufacturer?
Key Types and Specifications of Gel Coating Machines
Water-based gel coating machines are selected by production volume, coating viscosity, and surface requirements. A 2024 global waterborne coatings market report estimates the sector at about USD 75 billion in 2023, with annual growth near 5% through 2030. This growth increases demand for cleaner application systems and controlled film thickness.
Pressure-pot machines suit small batches and frequent color changes. Pneumatic diaphragm systems handle steady workshop production. Metering machines support more consistent dosing during continuous molding. Robotic or reciprocating units improve coverage on large panels, but they require accurate programming. Some factories choose automation too early. That can create maintenance costs without improving finish quality.
For water-based gel coating, specify stainless-steel wetted parts, low-shear agitation, and easy flushing. Typical spray systems may use 1.8–2.5 mm nozzles and adjustable pressure around 4–8 bar. These figures are starting points, not universal settings. Viscosity should be verified under actual plant temperature. ASTM D2196 is commonly used for rotational viscosity testing, while ASTM D4060 can help evaluate abrasion resistance. The machine should provide stable flow, usually confirmed through a measured flow curve rather than a single catalog value. Operators also need a visible pressure gauge, batch tank level control, and a short cleaning path. In practice, the perfect setting rarely exists. Trial panels still matter.
China Best Water Based Gel Coating Machine Manufacturer? - Key Types and Specifications of Gel Coating Machines
| Machine Type | Typical Application | Coating Width | Typical Line Speed | Suitable Viscosity | Typical Wet Film Thickness | Metering Method | Drying or Curing System | Recommended Production Scale |
| Laboratory Bench Coater | Formula testing, sample panels, process development, and small-batch validation | 100–300 mm | 0.1–10 m/min | 100–20,000 mPa·s | 20–1,000 μm | Doctor blade, wire-wound rod, or small slot die | Ambient drying or compact hot-air oven | Laboratory and pilot work |
| Roll Coating Machine | Continuous coating of films, foils, release liners, sheets, and flexible substrates | 300–1,600 mm | 5–80 m/min | 100–10,000 mPa·s | 10–300 μm | Gravure, reverse roll, direct roll, or five-roll system | Multi-zone hot-air drying; infrared preheating may be added | Pilot and medium-volume production |
| Slot-Die Coating Machine | Uniform, low-loss coating for films, textiles, paper, composites, and technical laminates | 100–2,000 mm | 1–100 m/min | 10–10,000 mPa·s | 5–500 μm | Precision slot die with metering pump | Hot-air flotation dryer or impingement dryer | Pilot and high-precision continuous production |
| Curtain Coating Machine | High-volume coating of flat panels, boards, molded parts, and rigid substrates | 600–2,500 mm | 10–100 m/min | 50–3,000 mPa·s | 50–500 μm | Free-falling liquid curtain from a precision die | Hot-air drying tunnel; staged temperature control | High-volume flat-panel production |
| Airless or Air-Assisted Spray Coater | Three-dimensional parts, irregular surfaces, molds, and large-area components | Part-dependent; commonly 200–2,000 mm spray envelope | 0.2–1.5 m/s gun travel | 50–5,000 mPa·s | 50–800 μm | High-pressure pump, air-assisted, or conventional spray gun | Ambient flash-off followed by heated drying when permitted by the coating | Custom parts and medium-volume production |
| Dip or Flood Coating System | Complete coverage of complex shapes, porous substrates, and components requiring edge coverage | Tank-dependent; commonly 300–2,000 mm part length | 0.1–5 m/min withdrawal or conveyor speed | 100–10,000 mPa·s | 50–1,000 μm | Immersion, controlled withdrawal, or recirculating flood applicator | Ambient leveling and hot-air drying | Batch and specialized continuous production |
Key Specification Checklist for Water-Based Gel Coating Machines
| Specification | Practical Selection Range | Why It Matters |
| Coating Width | 100–2,500 mm, selected according to substrate width and edge allowance | Determines usable production width, die size, material consumption, and machine footprint. |
| Line Speed | 0.1–100 m/min for most laboratory, pilot, and industrial configurations | Must match coating rheology, wet-film thickness, drying capacity, and required output. |
| Viscosity Control | Approximately 10–20,000 mPa·s, depending on applicator design | Water-based gels can be shear-thinning or temperature-sensitive; stable pumping and metering are essential. |
| Temperature Control | Material tank and lines commonly controlled around 20–40°C; dryer zones may reach 40–120°C | Moderate heating can improve flow, while excessive heat may cause skinning, foaming, or premature gelation. |
| Wet-Film Accuracy | Typical process target: ±5–10% of the specified wet-film thickness | Consistent thickness improves appearance, drying uniformity, adhesion, and material efficiency. |
| Pump and Recirculation | Low-pulsation diaphragm, progressive-cavity, or gear pump selected by formulation | Gentle circulation helps reduce settling, air entrainment, foaming, and viscosity variation. |
| Drying Capacity | Single or multi-zone hot-air tunnel, sized for water evaporation load and line speed | Water-based coatings require adequate airflow, residence time, and exhaust management to prevent defects. |
| Substrate Handling | Unwind and rewind, conveyor transport, web guiding, tension control, or fixture loading | Stable substrate movement is required to maintain coating uniformity and prevent wrinkles or edge defects. |
| Cleaning and Materials | Stainless-steel wetted parts, cleanable hoses, removable dies, and water-compatible seals | Fast cleaning reduces contamination risk, downtime, and changes in coating performance. |
Note: The values shown are typical engineering ranges for configurable water-based gel coating equipment. Final specifications should be confirmed through coating trials using the actual formulation, substrate, target thickness, drying requirement, and production rate.
